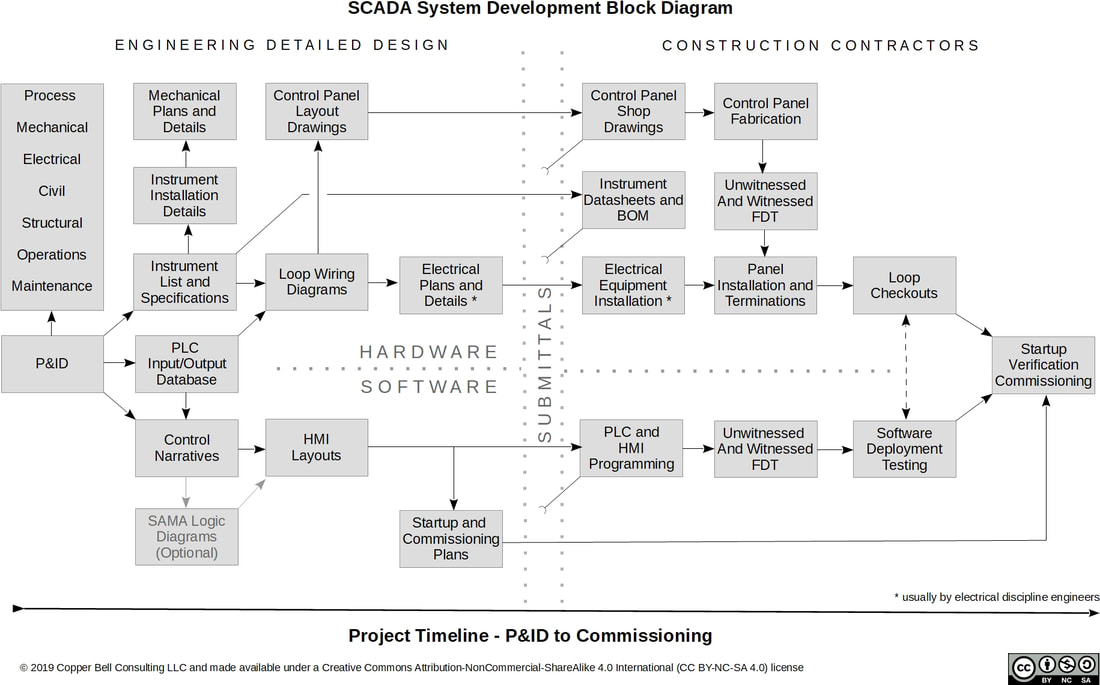

Here, the kinds of activities and work products that go into creating a new SCADA system are shown from conception to commissioning from the perspective of a Control Systems Engineer.
The key document to start with is a detailed and comprehensive P&ID. All disciplines can contribute to them and benefit from use during their own detailed designs. Tiny details like tag numbers for all devices and control IO as well as big picture ideas about the philosophy of control are shown. All mechanical devices and valves should be included.
The key document to start with is a detailed and comprehensive P&ID. All disciplines can contribute to them and benefit from use during their own detailed designs. Tiny details like tag numbers for all devices and control IO as well as big picture ideas about the philosophy of control are shown. All mechanical devices and valves should be included.
